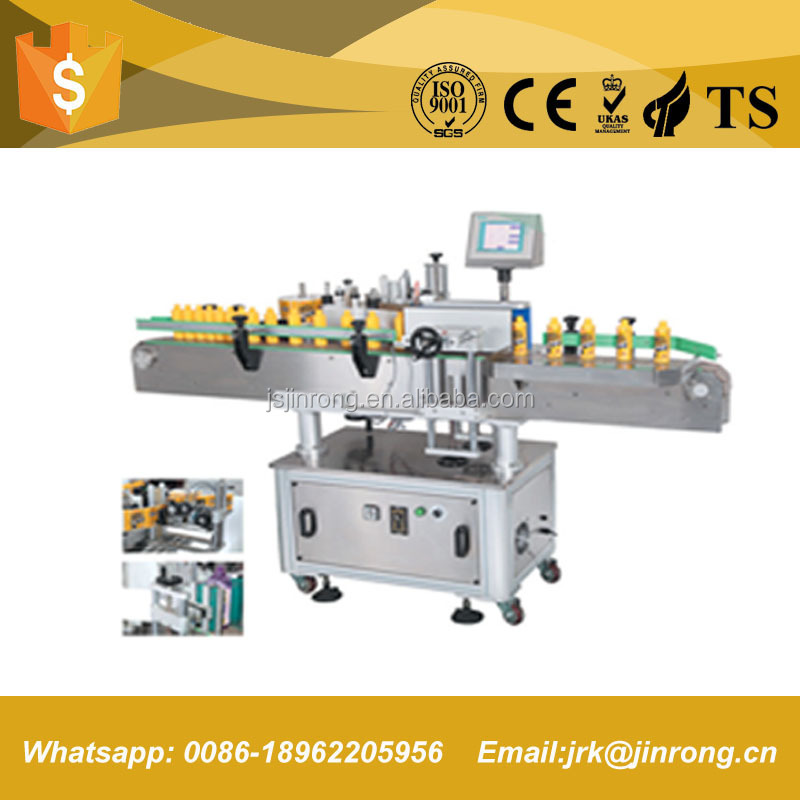

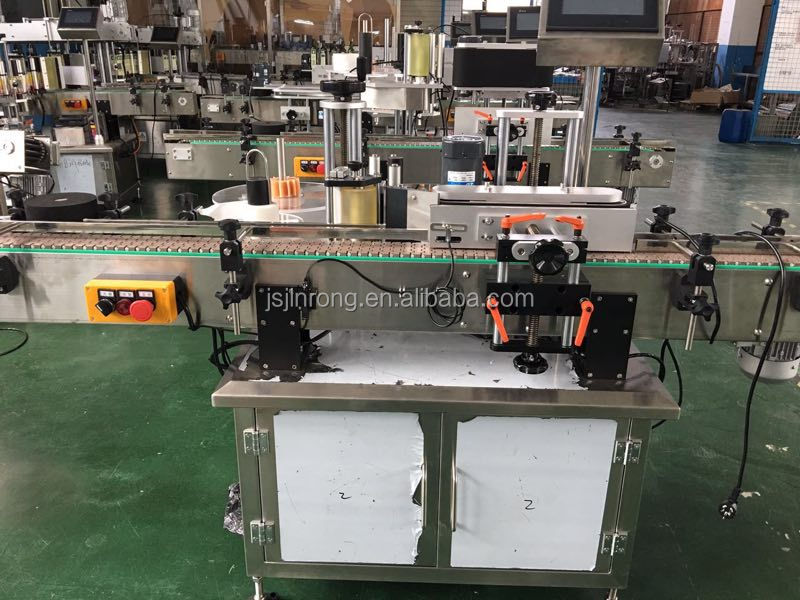

Automatic Self adhesive labeling machine for round bottle

FOB Reference Price:Get Latest Price
US $3,800-5,700 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
30 Piece/Pieces per Month
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Labeling Machine
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V 50/60HZ
Power:
1.5KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
JINRONG
Model Number:
TBJ-1

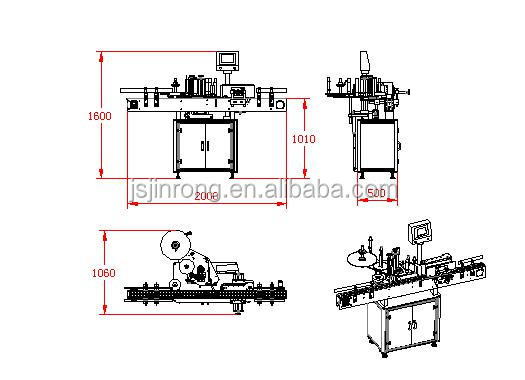

Dimension(L*W*H):
2000*1000*1600mm
Weight:
200kg
Certification:
ISO CE
After-sales Service Provided:
Engineers available to service machinery overseas
Labeling speed:
60-90 Bottles/min
Advantage:
Economy Labeling Machine
Bottle type:
Round Square Flat
Material:
SUS304
Packaging & Delivery
Packaging Details
wooden box
Delivery Time
30 days



This machine is suitable for round bottle or round container to label control system adopted matsushita

Stepper two-axis PLC control,collocation large LCD human interface,it is easily to operate, servo motor control label.This machine is made of SUS304 and aluminum alloy to meet GMP standards.

Labeling speed is synchronized with conveyor speed track, can be used with 650mm diameter turntable automatically into the bottle, optional hot foil printer.

Standard score better bottle wheel for roundness and labeling speed is less than 80 of bottles per

minute.

Separating screw labeling speed per minute for more than 80 bottles or more bottles and standing firm.



Main technical parameters of the equipment

Label height

A/10-120mm,C/10-180mm,D/10-220mm

Label length



10-300mm

Diameter of bottle body

30-130mm

(large size products, conveyor

belts can be widened)

Label roll innerdiameter

76mm

Label roll outerdiameter

≤360mm



speed

12-38 meters/min



      electricity consumption



0.7-1A
